Configure security devices

Enable Universal Zero Trust Network Access on Cisco Firewall Threat Defense devices so you can protect private resources and enforce identity-based access rules through Security Cloud Control.

All Firewall Threat Defense devices associated with the Cloud-Delivered Firewall Management Center that you onboarded to Security Cloud Control are security devices to which you can:

  • Associate private resources, which are internal applications you want to protect with identity-based access control, IPS, malware, and other protections.

  • Deploy Secure Access access rules. Security devices are responsible for enforcing access rules for on-premises users, remote users, or both.

Perform these steps to enable universal zero trust network access settings on the Threat Defense devices. These steps include configuring the device FQDN, inside interface, outside interface, and PKCS12 certificate to enable universal ZTNA on the devices.

Before you begin

You must know the name of each device's internal and external network interfaces:

  • The internal interface (also referred to as the DMZ interface) is used to apply access rules to on-premises users.

  • The external interface is used to apply access rules to remote users.

You can choose internal, external, or both types of interfaces for each security device.

Follow these steps to configure security devices for Universal Zero Trust Network Access:

Procedure


Step 1

In the Cloud-Delivered Firewall Management Center, click Policies > Security policies > Zero Trust Application.

Step 2

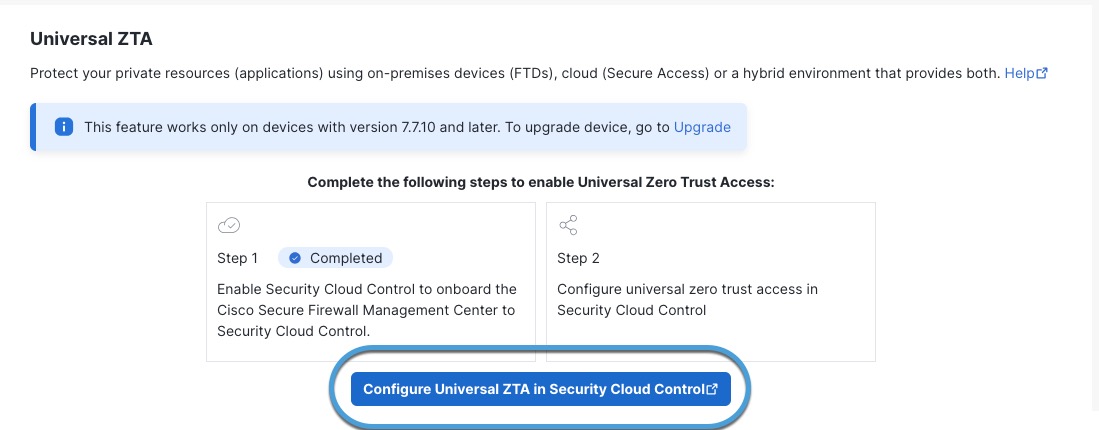

Click Configure Universal ZTA in Security Cloud Control.

This figure shows an example.

The figure illustrates the configuration process for security devices in a Universal Zero Trust Network Access setup, highlighting the selection of an organization with both Secure Access and Secure Firewall micro applications.

Step 3

When prompted, log in to Security Cloud Control.

Step 4

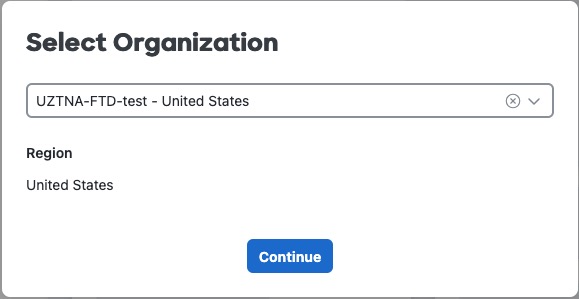

When prompted, select your organization from the drop-down list and click Continue.

Select an organization that has both Secure Access and Secure Firewall micro applications configured.

This figure shows an example.

The figure illustrates the configuration of security devices, highlighting the integration of Secure Access and Secure Firewall micro applications within an organization.

Step 5

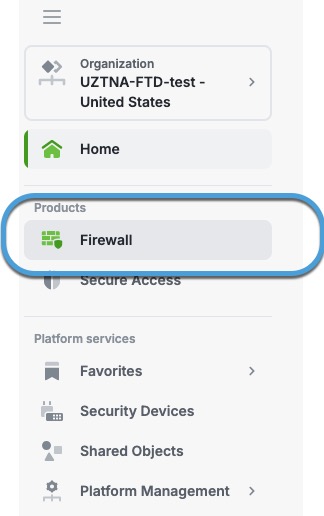

In Security Cloud Control, in the Products section, click Firewall.

This figure shows an example.

The Security Devices page illustrates the configuration of security devices, highlighting the integration of Secure Access and Secure Firewall micro applications within an organization.

Step 6

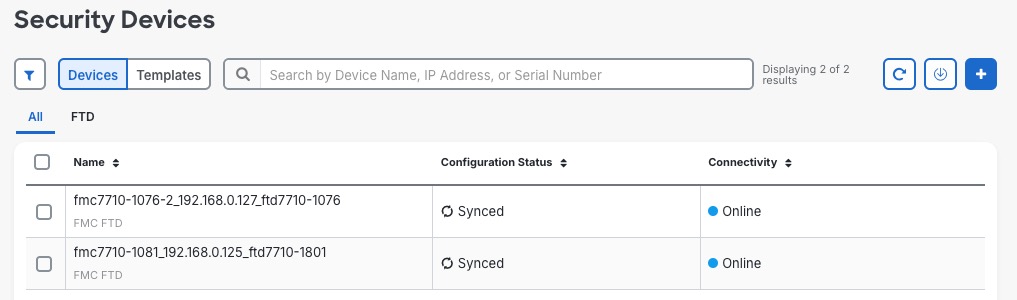

In the Manage section, click Security Devices.

The Security Devices page displays the available security devices.

The Security Devices page illustrates the layout and available options for configuring security devices in the system.

Step 7

Select the check box next to a device to add to the universal zero trust network access configuration.

Step 8

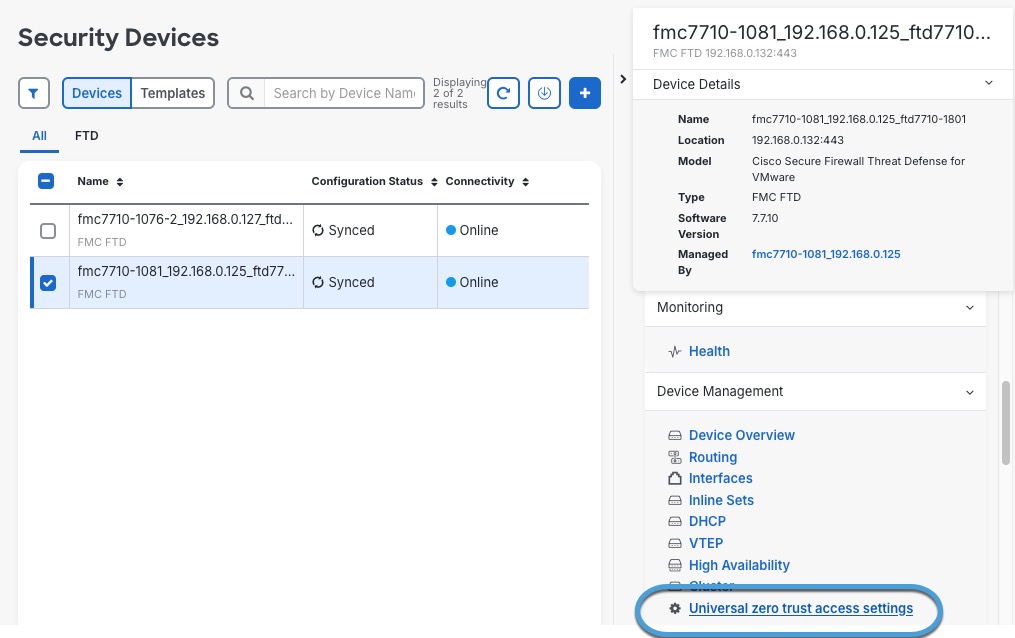

In the right pane, click Device Management > Universal zero trust access settings.

This figure shows an example.

The figure illustrates an example configuration for security devices, highlighting key settings and options necessary for enabling security features.

Step 9

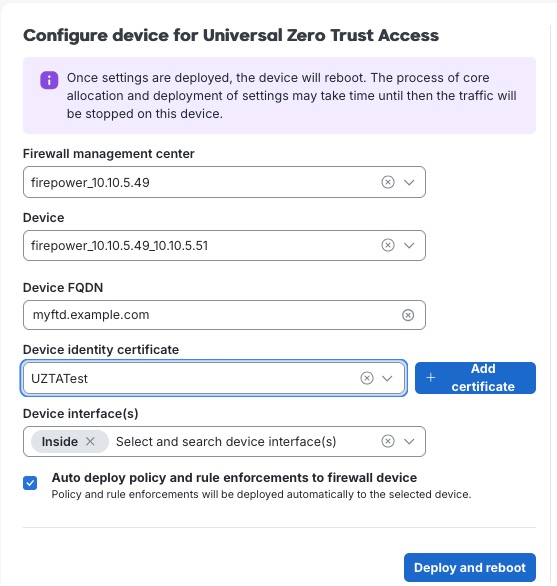

Enter or edit the following information on the Configure device for Universal Zero Trust Access page.

The figure illustrates an example configuration for security devices, highlighting key settings and options necessary for enabling security features.

This table describes the configurations to enable universal ZTNA on the device.

Item

Description

Firewall management center

From the drop-down list, click the name of a Cloud-Delivered Firewall Management Center to use for policy deployment, monitoring, and other tasks.

Device

From the drop-down list, click the name of a device to use for rule deployment and enforcement.

Device FQDN

Enter the security device's fully qualified domain name (FQDN). The FQDN is also referred to as the TLS/SSL certificate's Common Name.

Secure Access redirects the clients to the resource that is represented by this FQDN.

Ensure that the device FQDN exactly matches the Common Name (CN) of the device identity certificate and must also match a Subject Alternative Name (SAN) in the certificate.

Device identity certificate

The Device identity certificate must have a Common Name that:

From the drop-down list, click the name of an existing identity certificate from the list.

Click Add certificate and add an identity certificate in .p12 format (also referred to as PKCS#12; see this article on ssl.com).

Note

Universal ZTNA supports only the PKCS#12 format of certificate enrollment.

In the provided fields, enter a Name to identify the certificate. Then copy/paste, drag/drop, or upload the certificate and private key. If the certificate is encrypted, enter its password in the provided field.

You can optionally use a wildcard certificate as discussed in What is a Wildcard Certificate? on ssl.com.

Device Interface(s)

From the drop-down list, select the check box next to any of these types of interfaces.

  • Internal network interface (or DMZ): deploys access rules for on-premises users only.

  • External network interface: deploys access rules for remote users only.

  • Both types of interfaces: deploys access rules for either on-premises or remote users.

Auto deploy policy and rule enforcements to firewall device

Select the check box to automatically deploy access rules to the device after they are updated on Secure Access.

On the device, the Auto deploy feature selectively deploys only the Universal ZTNA access policy. It does not impact other changes or configurations on the Firewall Management Center.

Note

If there are other interdependent policies on the device (which are interlinked with the Universal ZTNA access policy), the Firewall configuration status displays an error message. The deployment then stops. In such cases, you should manually deploy the Universal ZTNA access policy from the Firewall Management Center.

Step 10

Click Deploy and Reboot.

The device reboots to reallocate the system resources for universal ZTNA components.

Note

The device takes several minutes to reboot, during which time all traffic handled by the device is disrupted.

If you deploy a High Availability (HA) pair of devices, both devices reboot simultaneously.

Step 11

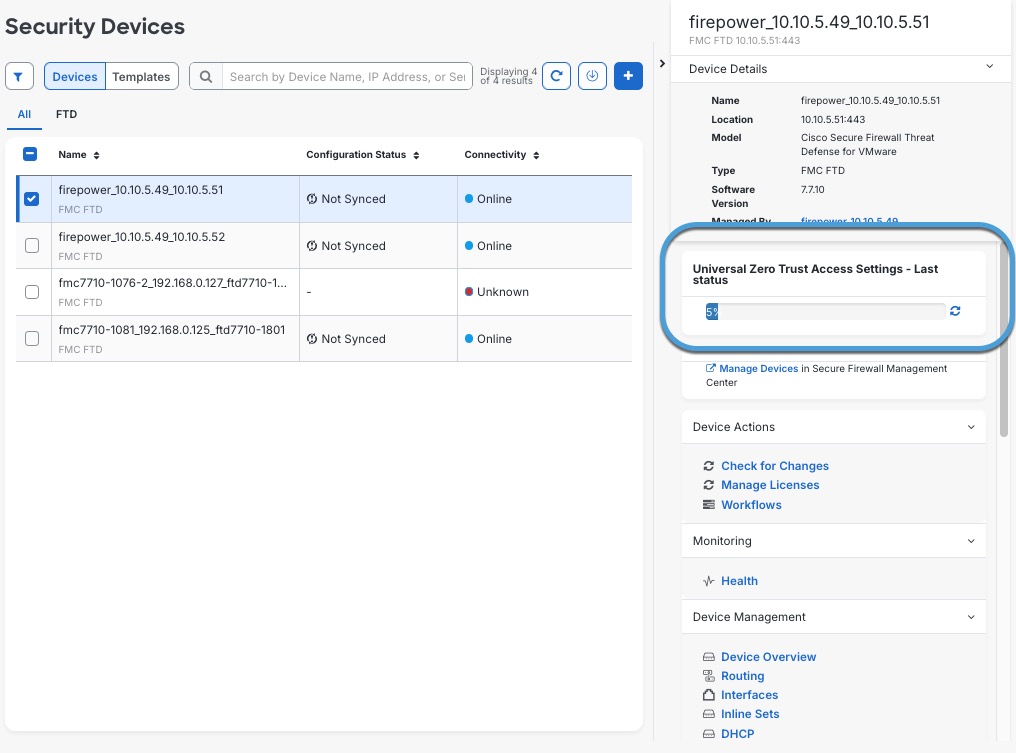

On the Security Devices page, select the check box next to the device to which you just deployed the Universal ZTNA configuration.

The right pane displays the deployment status, as shown in the figure.

The right pane shows the deployment status of a security device during a reboot, highlighting the disruption of traffic and the simultaneous reboot of a High Availability (HA) pair.

For additional information, click Device Actions > Workflows in the right pane.

After the deployment completes, you can view the completion status in the Universal Zero trust Access Settings - Last status tab for the device.


Universal ZTNA-enabled Firewall Threat Defense device is connected to Secure Access.

What to do next:

Check the availability of the Threat Defense device under Secure Access by clicking Security Cloud Control > Secure Access > Connect > Network Connections > FTD.
